The SAEAUT SNMP OPC Server Configurator was enhanced about the possibility to retrieve (GET operation) or set (SET operation) a value of SNMP object even in the time of configuration creation. Both operations are executed ON-LINE directly on an available device without using of OPC interface.
It means, this functionality brings possiblity to test a pure SNMP communication. The operations GET and SET enable also to verify important information if a device is available or if a data item is available.
The SAEAUT SNMP OPC Server implements two following SNMP operations in the configurator:
· | The GET operation retrieves a value from a SNMP device. This operation retrieves a value of a SNMP object (associated by Object ID).
|
· | The SET operation sets a new value in a SNMP device. This operation sets a new value of a SNMP object (associated by Object ID).
|

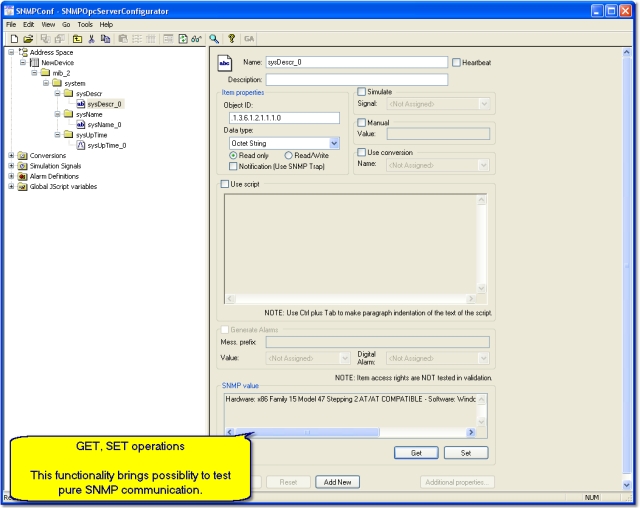

The mentioned functionality is implemented in the Data Item dialog. More details are available in the associated sub-topics.
|
Related articles
The GET operation retrieves a value from a SNMP device.
|
The SET operation sets a new value in a SNMP device.
|
|
